ARMOUR® vertical mill liners

Get up to 30% longer wear life from your vertical mill liners

ARMOUR^® mill liners are engineered to fit the vertical grinding mills you already run, last longer while performing and bring down your cost per tonne. Start with a free wear survey on one of your mills.

Home/.../Milling consumables/ARMOUR^® vertical mill lin...

30% longer wear life, Predictable shutdown planning

As liners wear, agitator-to-shell clearance widens and stress intensity drops, so grind efficiency falls away before the set is due out. Wear life then swings from cycle to cycle, shutdown dates move and cost per tonne climbs late in every campaign. FLS ARMOUR® mill liners are built for fine grinding: advanced material blends resist abrasion and precision-engineered geometries hold their shape, so slurry flow, media motion and agitator-to-shell interaction stay closer to design from installation through to replacement. In controlled wear testing, ARMOUR® liners have demonstrated up to 30% longer wear life in suitable applications.

Download the product leaflet

Longer life, steadier grinding, lower cost per tonne

Up to 30% longer wear life
Demonstrated in controlled wear testing, in suitable applications. Every reline you take out of the year is a planned stop you do not lose, a crew you do not mobilise and a liner set you do not buy.
Predictable performance
Stable wear patterns and optimised geometries keep grind efficiency and torque steadier across the cycle. Your shutdown dates hold, and the mill spends more of its life in the operating window it was designed for.
Drop-in fit, no mill modification
Vertical mill liner envelopes are standardised across most designs. ARMOUR^® kits are engineered to match your fit envelope on FLS and non-FLS mills, so you can trial a better liner without re-engineering the mill or changing maintenance routines.

Frequently asked questions

FAQs for vertical mill liners

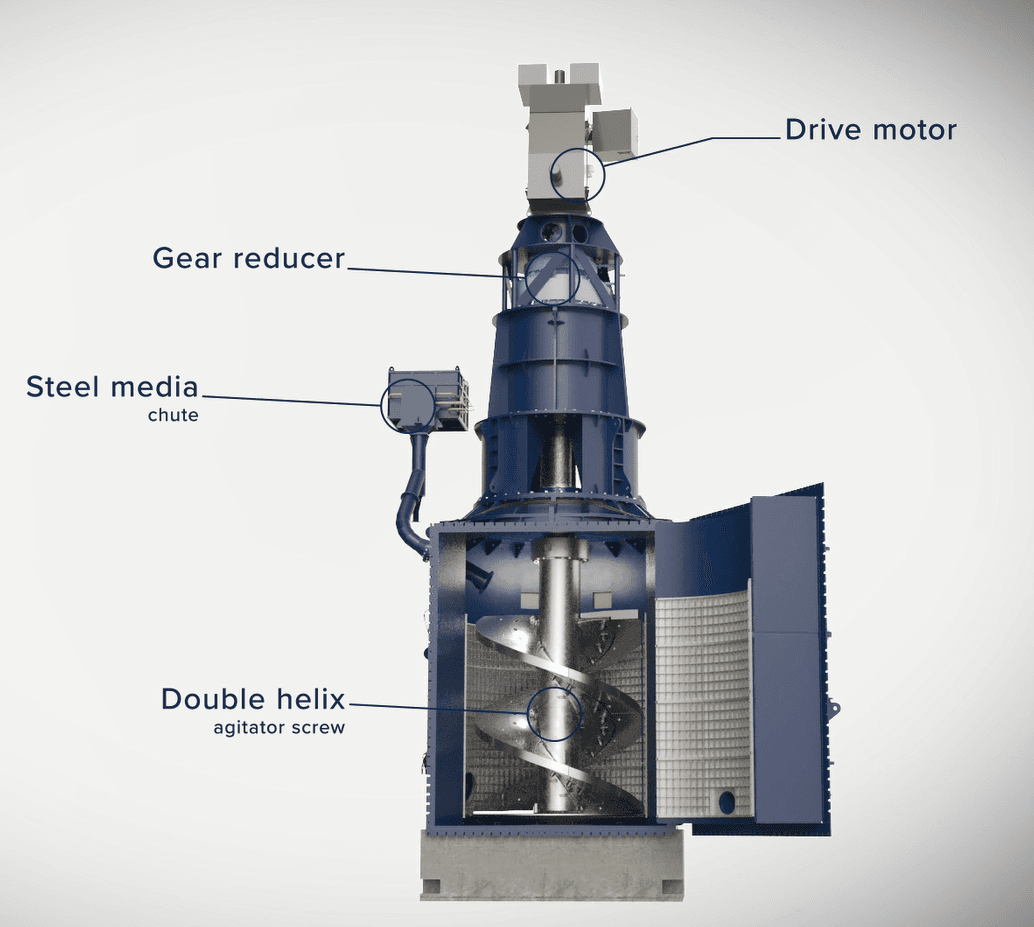

Vertical mill liners are the replaceable wear components that protect the inside of a vertical grinding mill, such as a stirred media mill, a tower mill or a regrind mill. They cover the shell, the base and the zones around the agitator or screw. Because they form the wall of the grinding chamber, they also set the clearance between the agitator and the shell, which is one of the main drivers of grinding performance. Liners are consumables and are replaced on a wear cycle.

Wear life depends on ore hardness and abrasiveness, feed size, media type, slurry chemistry and how hard the mill is run, so it varies widely between sites and even between mills on one site. What matters more than the headline figure is consistency: many operations see wear life move from cycle to cycle, which makes shutdown planning difficult. Measuring your own wear rate on site, rather than working from a supplier average, is the only way to get a usable baseline. That is what a wear survey produces.

ARMOUR® liners have demonstrated up to 30% longer wear life in suitable applications in controlled wear testing. The gain comes from two things working together: material blends that resist abrasion, and geometries that hold their shape so the grinding chamber stays closer to its design profile deeper into the cycle. Whether your duty is one of those suitable applications is exactly what a wear survey establishes before you commit to anything.

Yes. Vertical mill liner envelopes are standardised across most vertical mill designs, so ARMOUR® kits are engineered as drop-in replacements to match your existing fit envelope on both FLS and non-FLS equipment. No mechanical modification to the mill is needed, and your existing changeout routine does not change. That is what makes a like-for-like trial on a single mill practical.

ARMOUR® liners for vertical mills are engineered for fine-grinding mineral duties, with regrind the most common application. Copper and iron regrind circuits are where FLS sees the highest wear rates and the strongest case for longer liner life, followed by gold and other base metals. Lime, limestone and flue-gas duties have a different wear profile and are not part of this offering.
