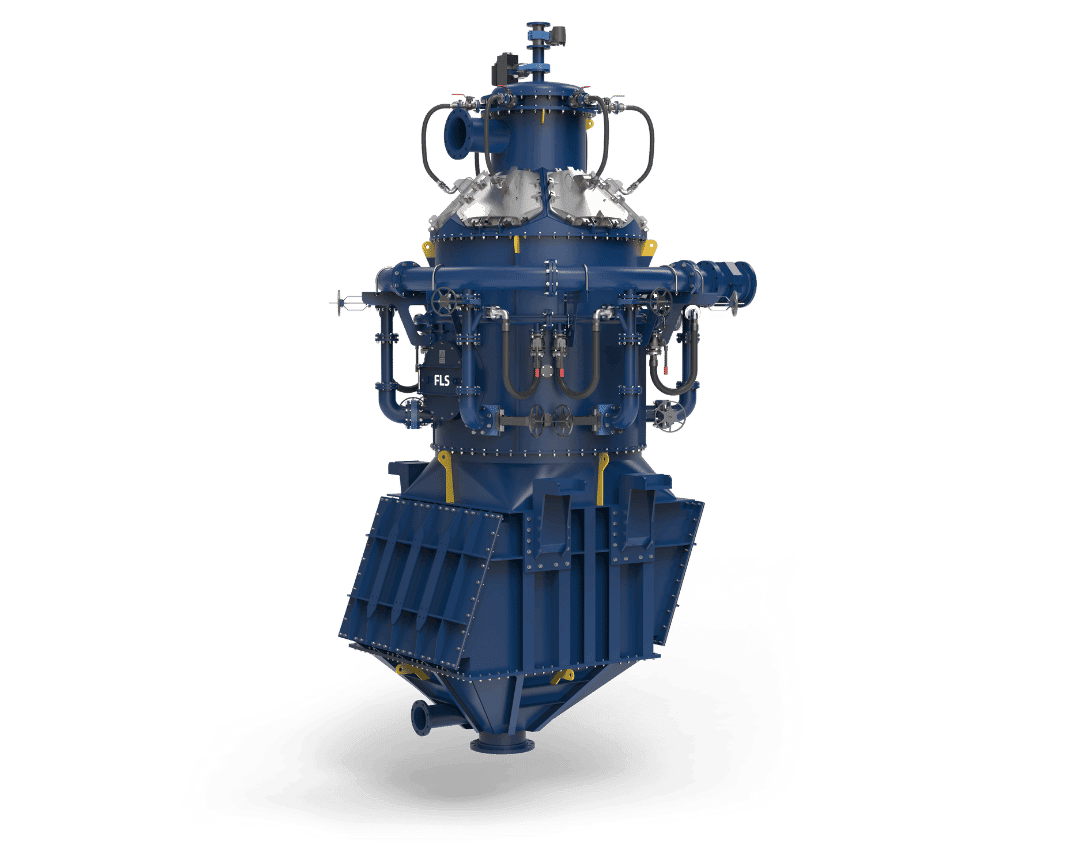

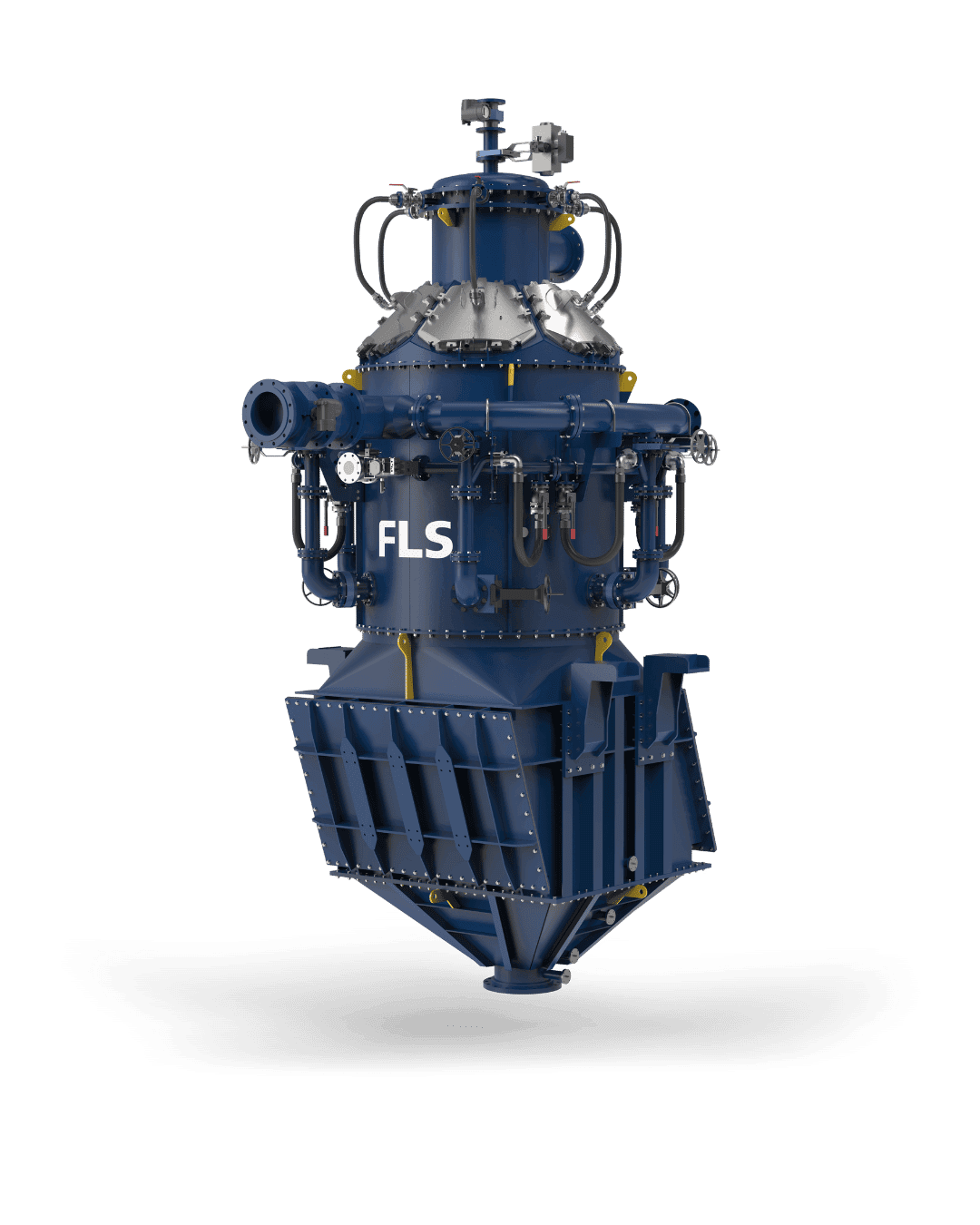

The REFLUX™ Flotation Cell (RFC™) radically alters perceptions of froth flotation performance. It operates at extreme levels of gas and feed flux, and fluidisation wash water to deliver up to tenfold higher throughput, with enhanced grade and recovery, all with a smaller plant footprint.
The RFC provides faster flotation kinetics compared to conventional open tank technology, maximising recovery rates while allowing a reduction in the necessary flotation cell volume or footprint. A single, full-scale REFLUX Flotation Cell may thus effectively replace up to ten traditional flotation cells, significantly reducing flotation plant CAPEX requirements.
The RFC delivers higher product recovery and improved product grade than conventional open tank technologies through its unique design that improves the hydrodynamics of flotation.
By reducing power (up to 30%), air (up to 65%), and wash water consumption compared to froth washing flotation technology, as well as simplifying maintenance, the REFLUX Flotation Cell significantly lowers the operating costs of flotation plants.
The high-sheer pre-contacting spargers and inclined channels allow operation under air-flooded conditions, delivering high operational gas flux rates while reducing bubble size. This increases the available bubble surface area flux by a factor of four compared to traditional flotation cells, significantly increasing collision and attachment rates. Contact between bubbles and floatable materials occurs in a high shear rate environment, elevating recovery rates. Recoveries are further enhanced by eliminating operation with a designated froth-pulp interface. Finally, the application of fluidisation water delivers highly effective counter-current washing and gangue rejection, producing a high-grade product.
Enhance mining performance and efficiency through data-driven insights for more sustainable operations.
Patent-protected lamella and fluidised bed design enables finer separation at lower pressures, cutting power per tonne processed.
Designed to global safety standards with safe lifting lugs and a pressurised chamber equipped with a relief valve and pressure monitor.
Achieves high separation efficiency for thickened tailings, reducing water use and creating more compact, easier-to-manage solid waste.
Efficient separation boosts water recycling, reduces fresh water use, and the compact footprint supports closed-circuit water management.
Our Aftermarket Department offers reliable and timely supply of spare and wear parts, ensuring minimal downtime and optimal equipment performance. Whether it’s technical advice, troubleshooting or circuit optimisation, we work closely with mine site teams to ensure the longevity and efficiency of the equipment throughout its lifecycle.
Additionally, we offer comprehensive support services, including circuit audits, preventive maintenance programs, training for mine operators and maintenance personnel, and detailed reporting on equipment performance. Our goal is to help maximise productivity, minimise downtime, and ensure the safe and efficient operation of our clients’ mining assets.
